ULTRA STONE SLINGER

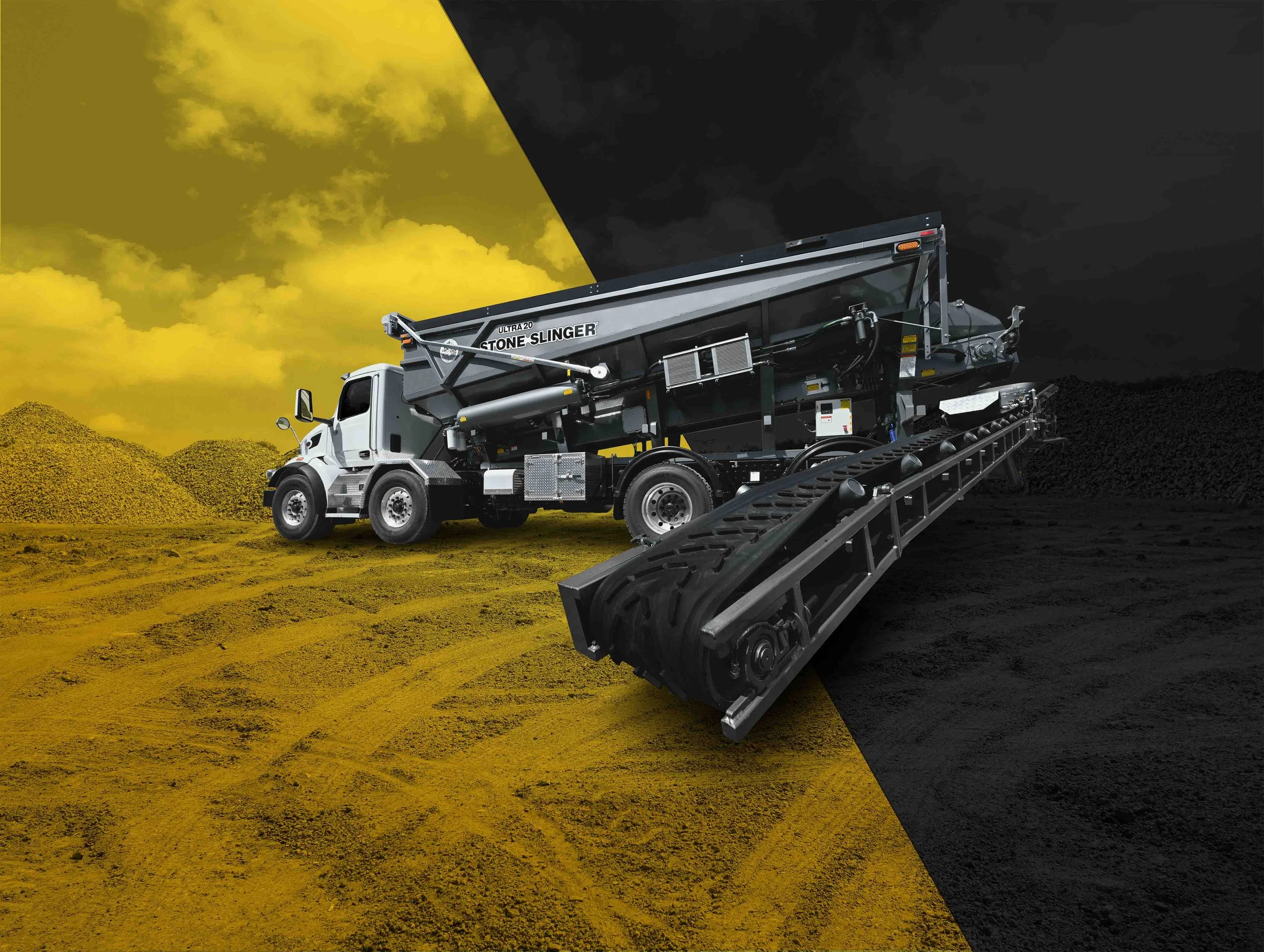

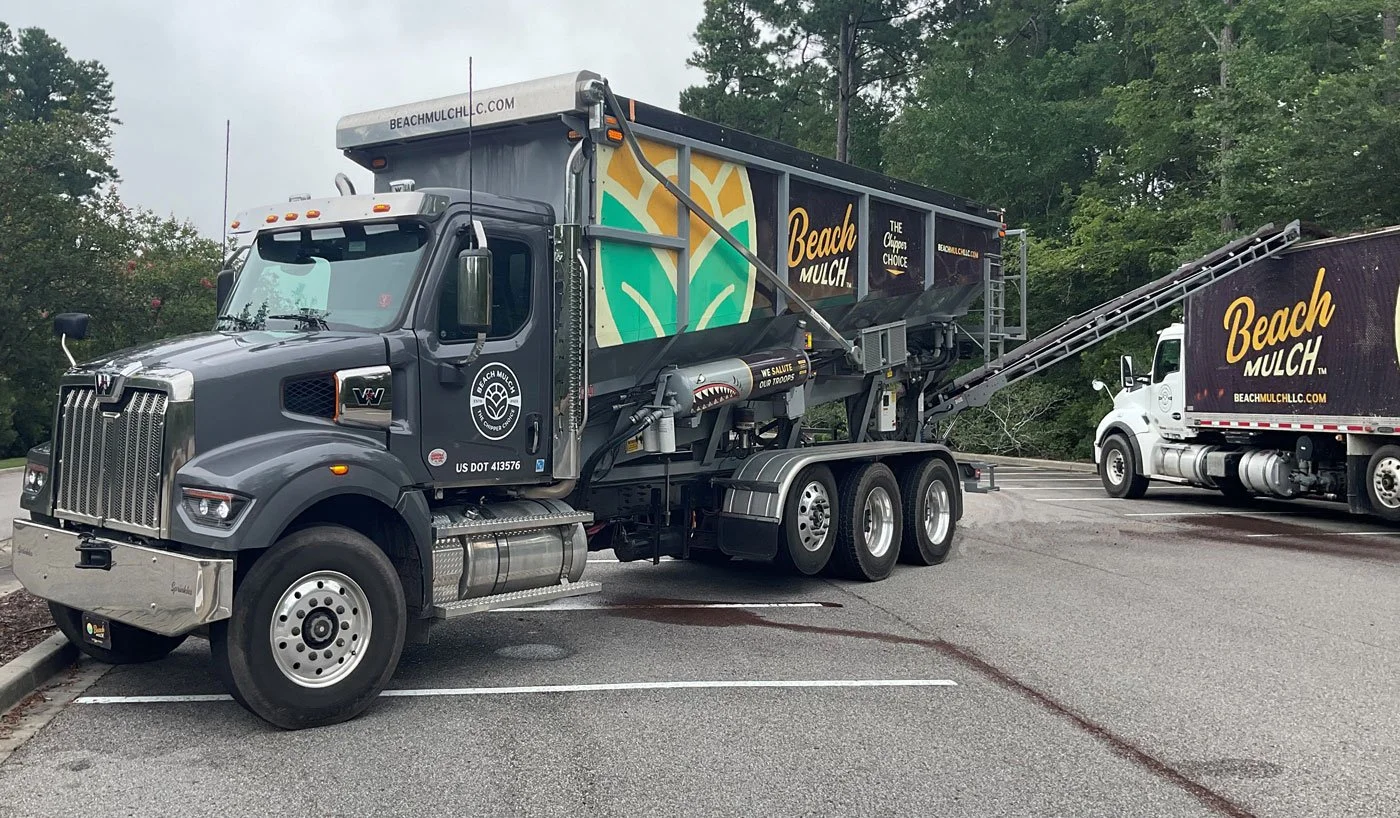

Introducing the Ultra Stone Slinger - an industry-preferred, precision material delivery system by WK Dahms. The Ultra Stone Slinger is meticulously designed to provide precise placement of materials such as dirt, mulch, topsoil, aggregates, and sand with labor-free efficiency, reducing construction time, and minimizing clean-up.

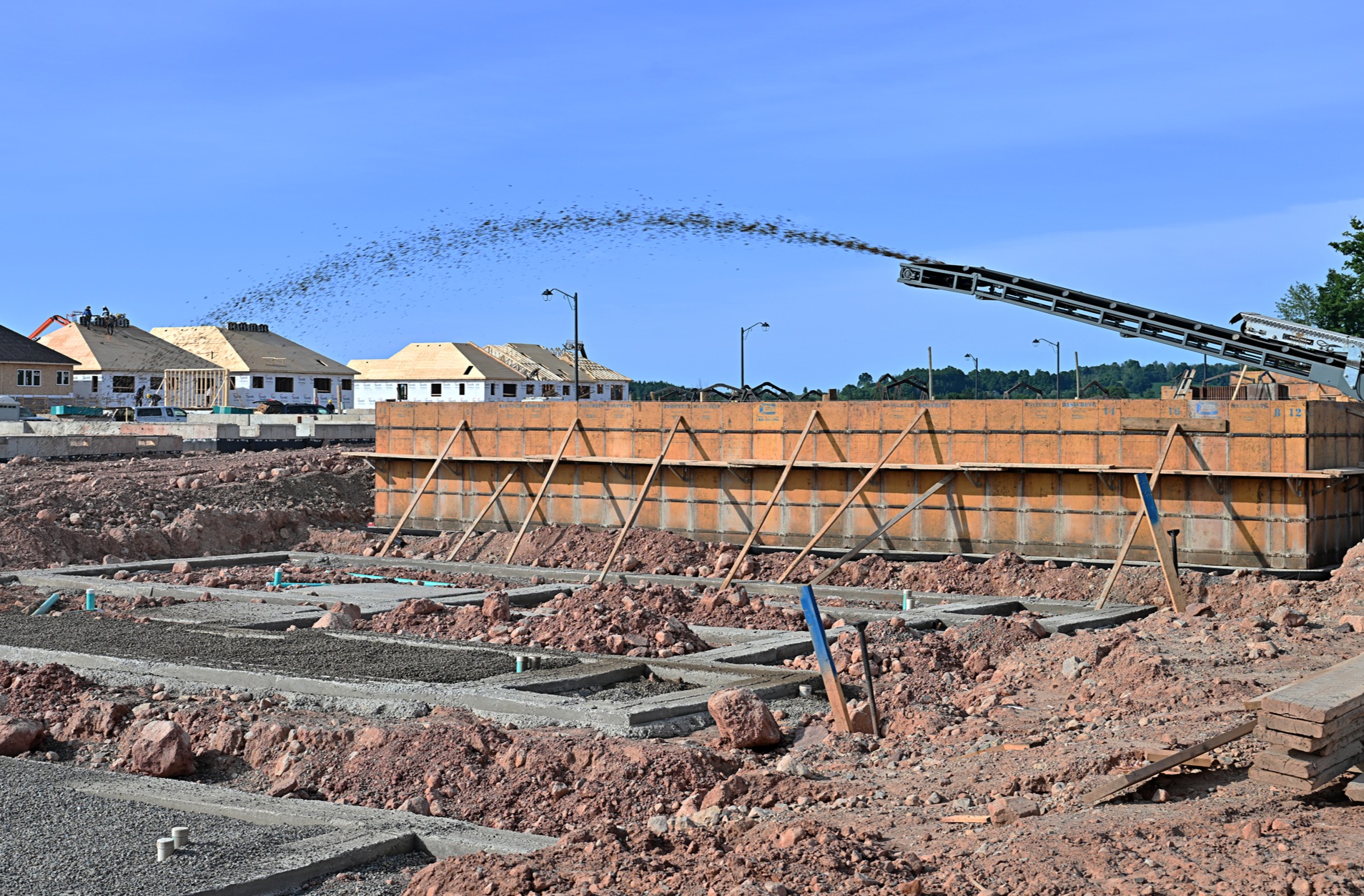

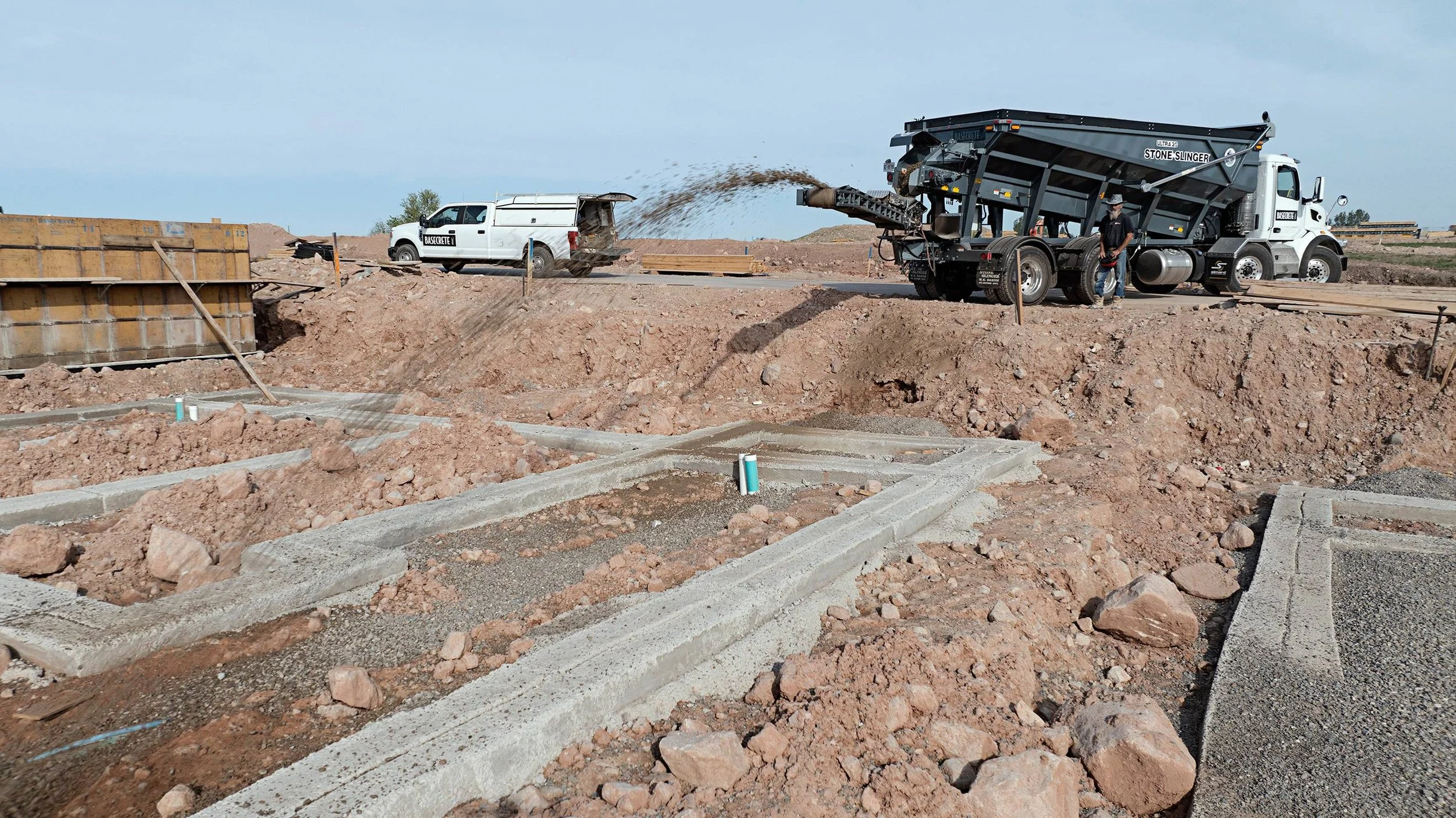

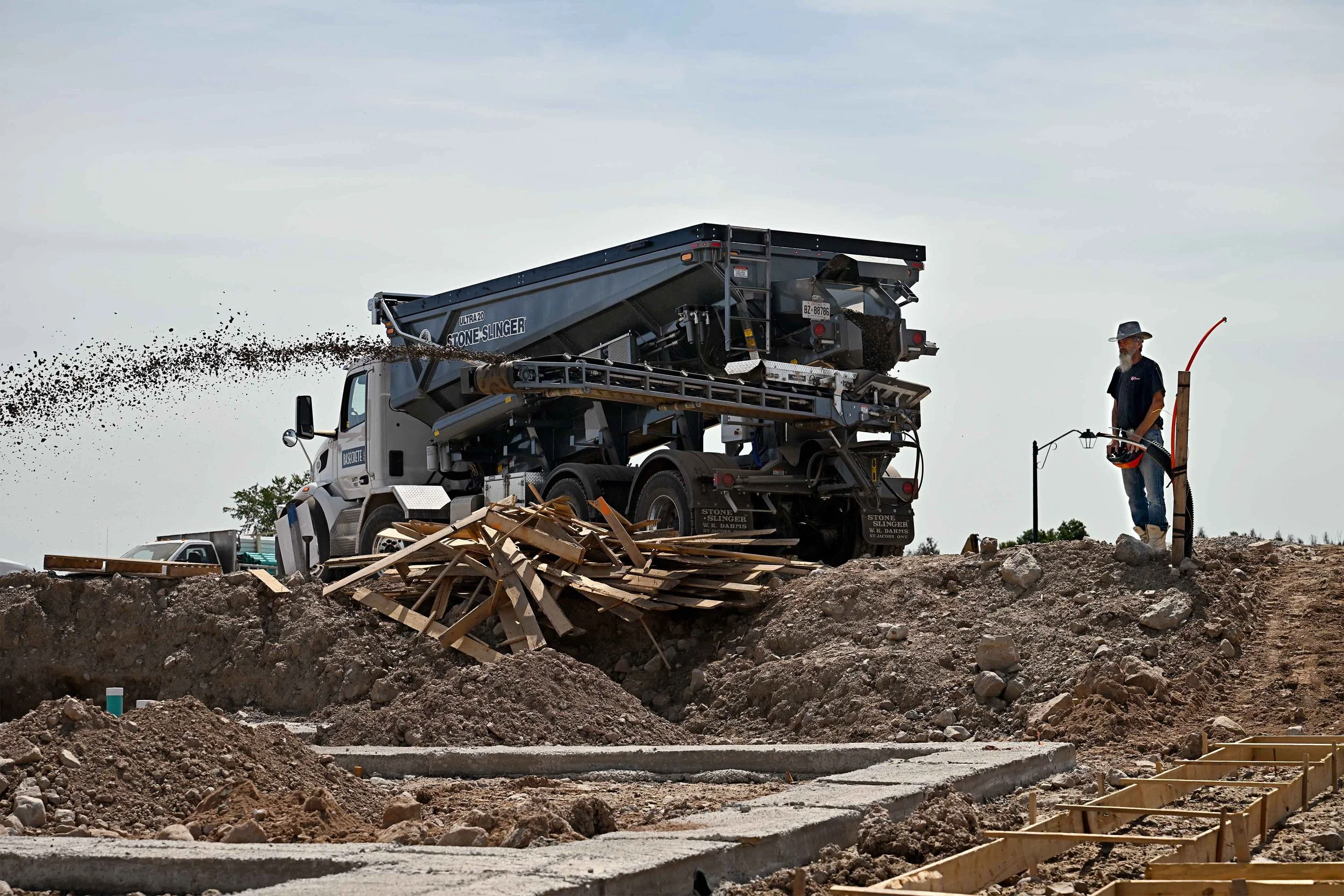

Available in multiple sizes, the Ultra Stone Slinger can accurately place materials up to 100 feet from the end of the truck, eliminating the need for re-handling material. Its durable and robust build ensures safe, reliable, and long-lasting performance.

The Ultra Stone Slinger is built to order, with options to suit specific needs, and can be customized through WK Dahms' engineering services for unique and specialized solutions.

WATCH IT IN

ACTION

PRODUCT FEATURES

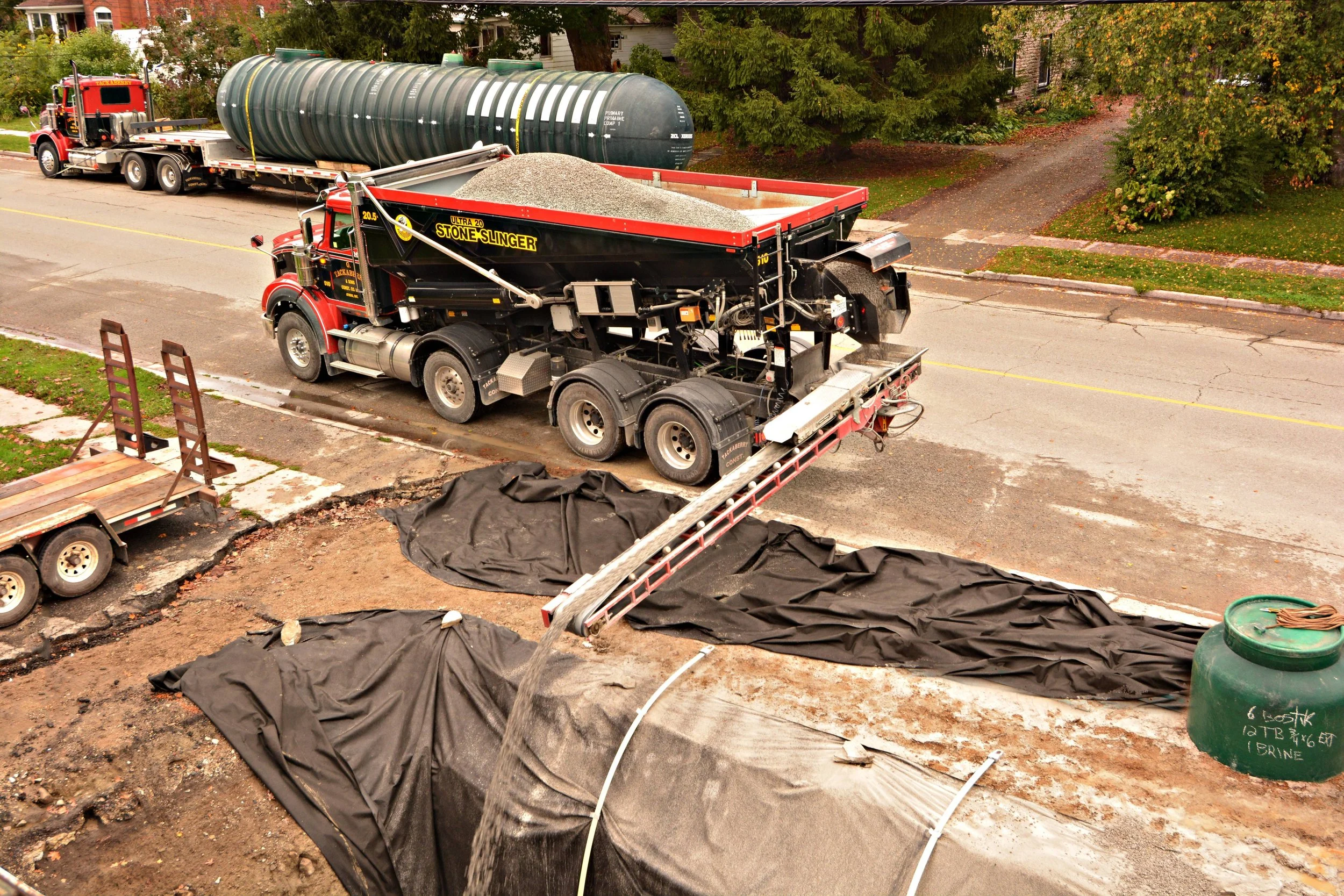

LIVE BOTTOM CONVEYOR

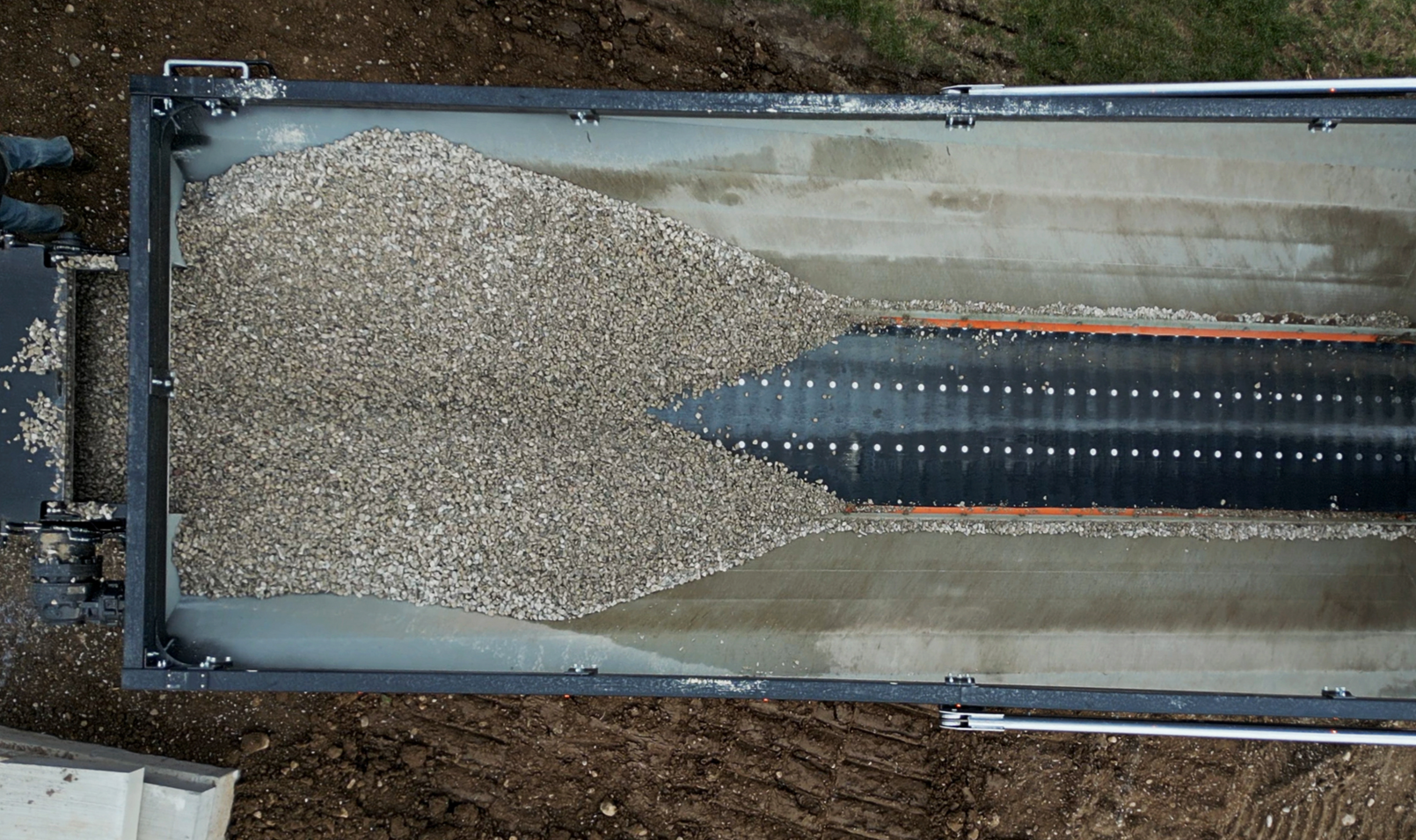

The live bottom conveyor eliminates gates, beams and the issues associated with them. Powered by a robust planetary drive, the live bottom system off-loads smoothly to the conveyor belt.

SUPER-SHIELD™

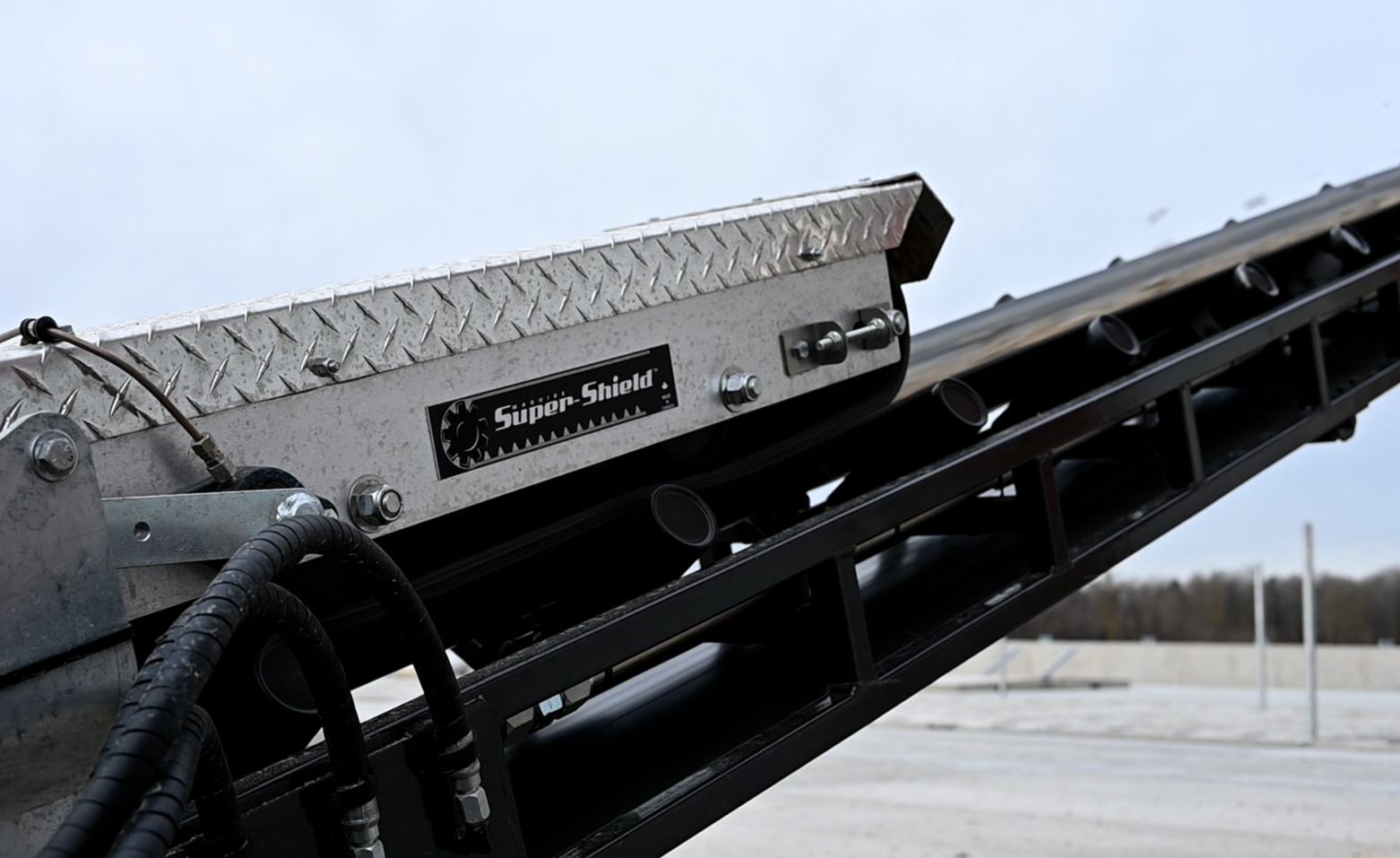

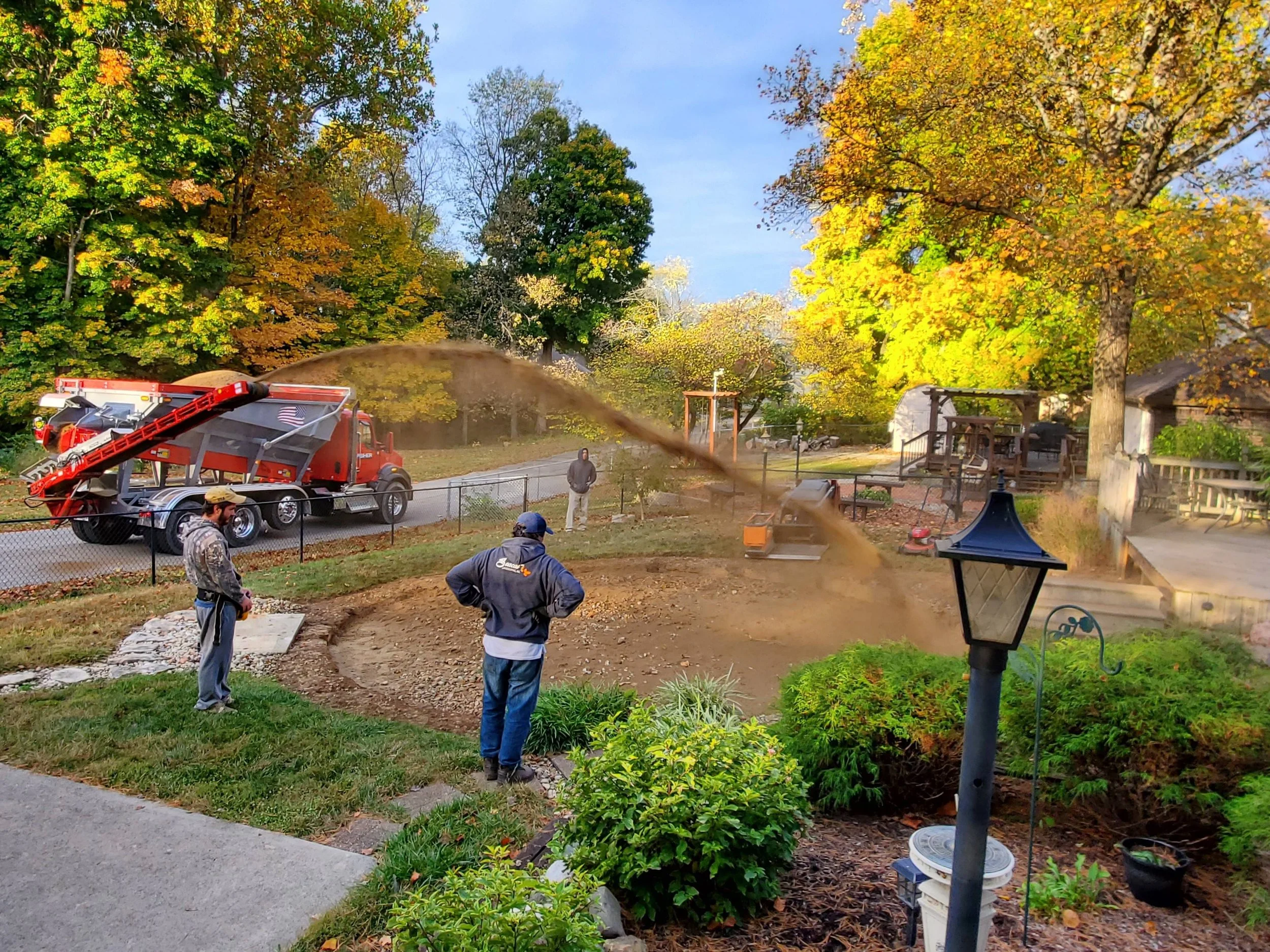

The Super-Shield™ Power Drive matches the conveyor belt speed to improve control of material on the belt and allow precise delivery, even to those difficult to reach areas up to 100 ft. away.

CONVEYORS/PRECISION

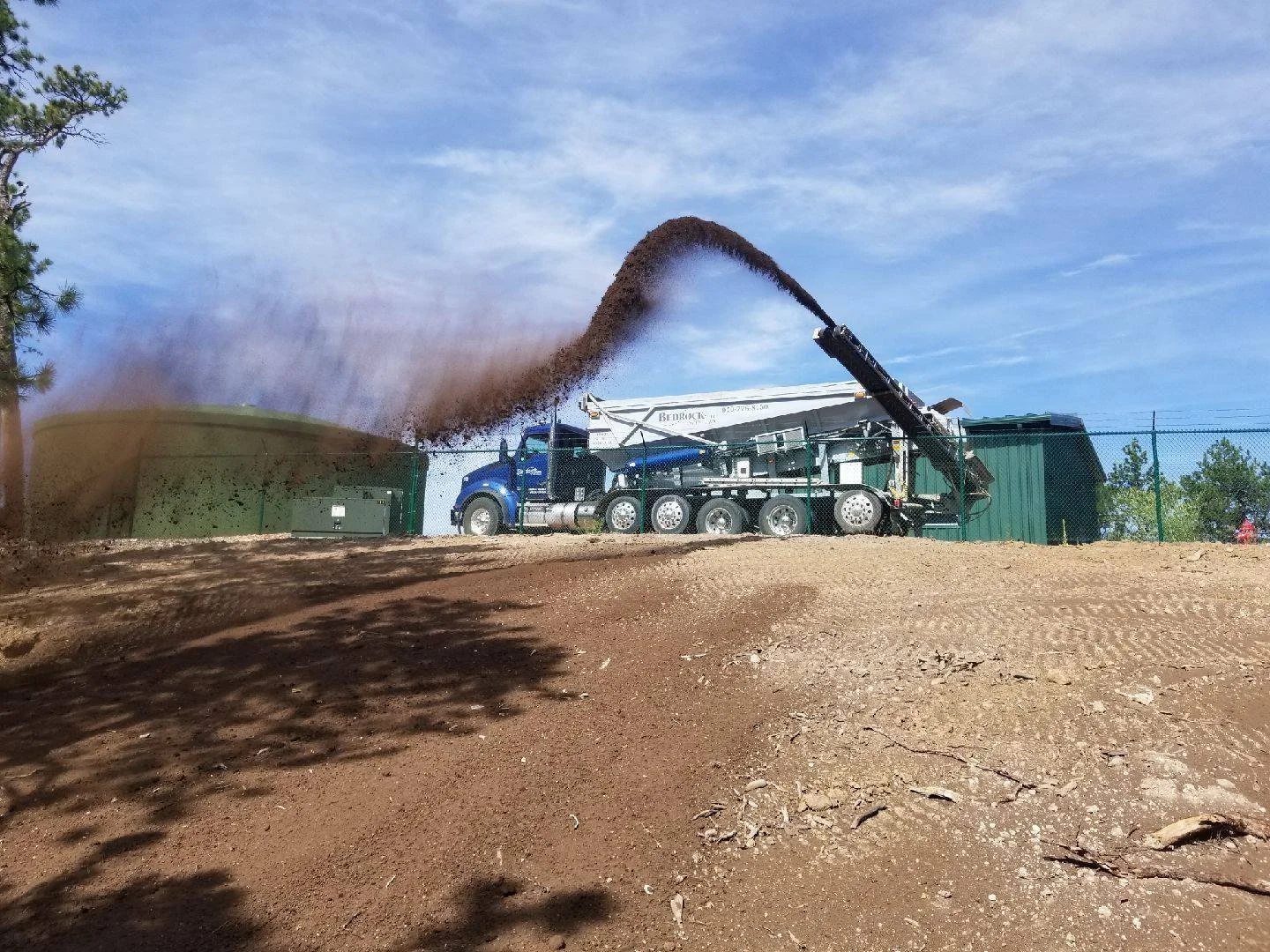

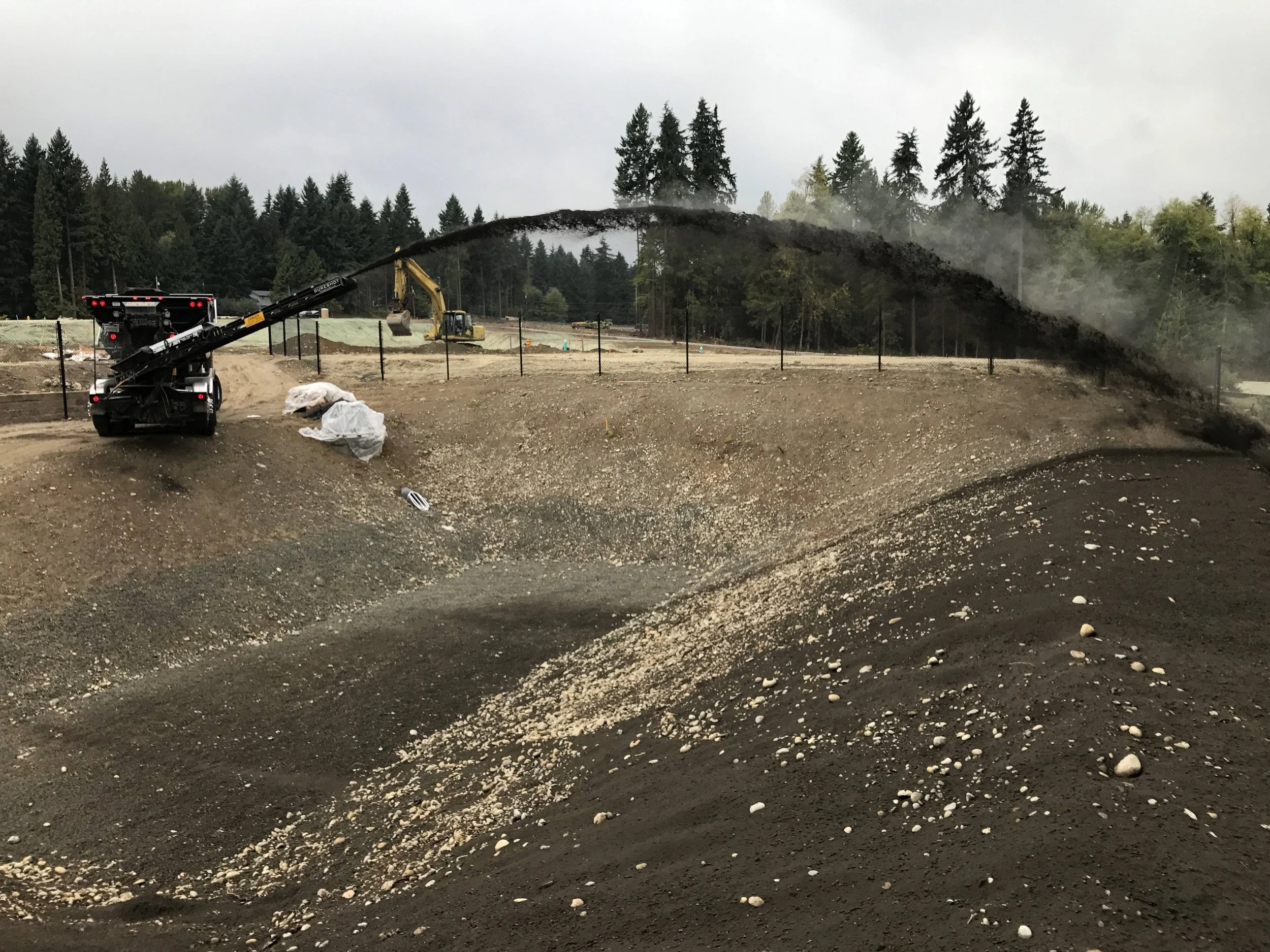

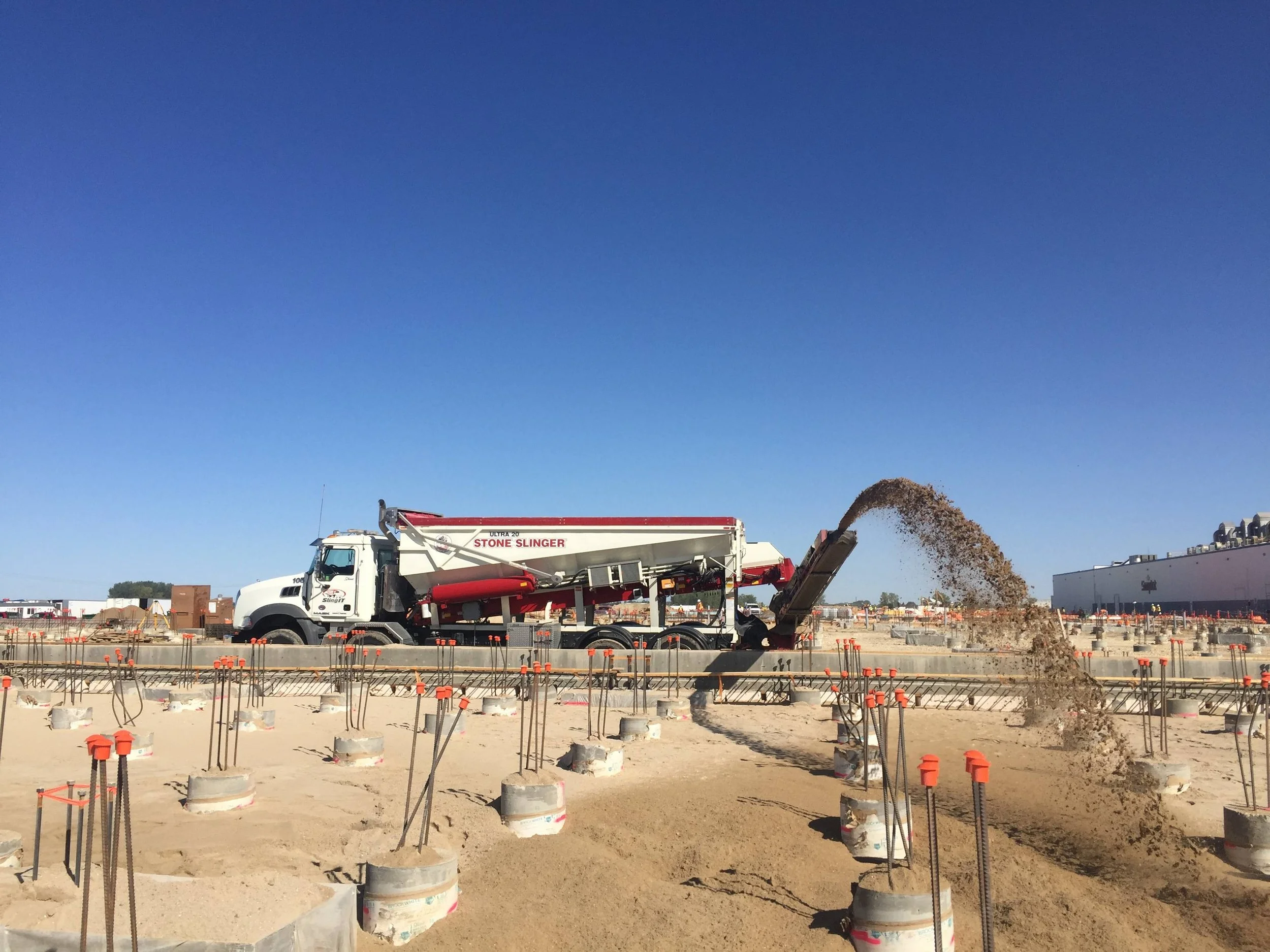

With a 250º working pivot radius and an increased angulation of 23º above and below the horizontal, operators have complete control for precise placement up to 100 ft.

REMOTE OPERATION

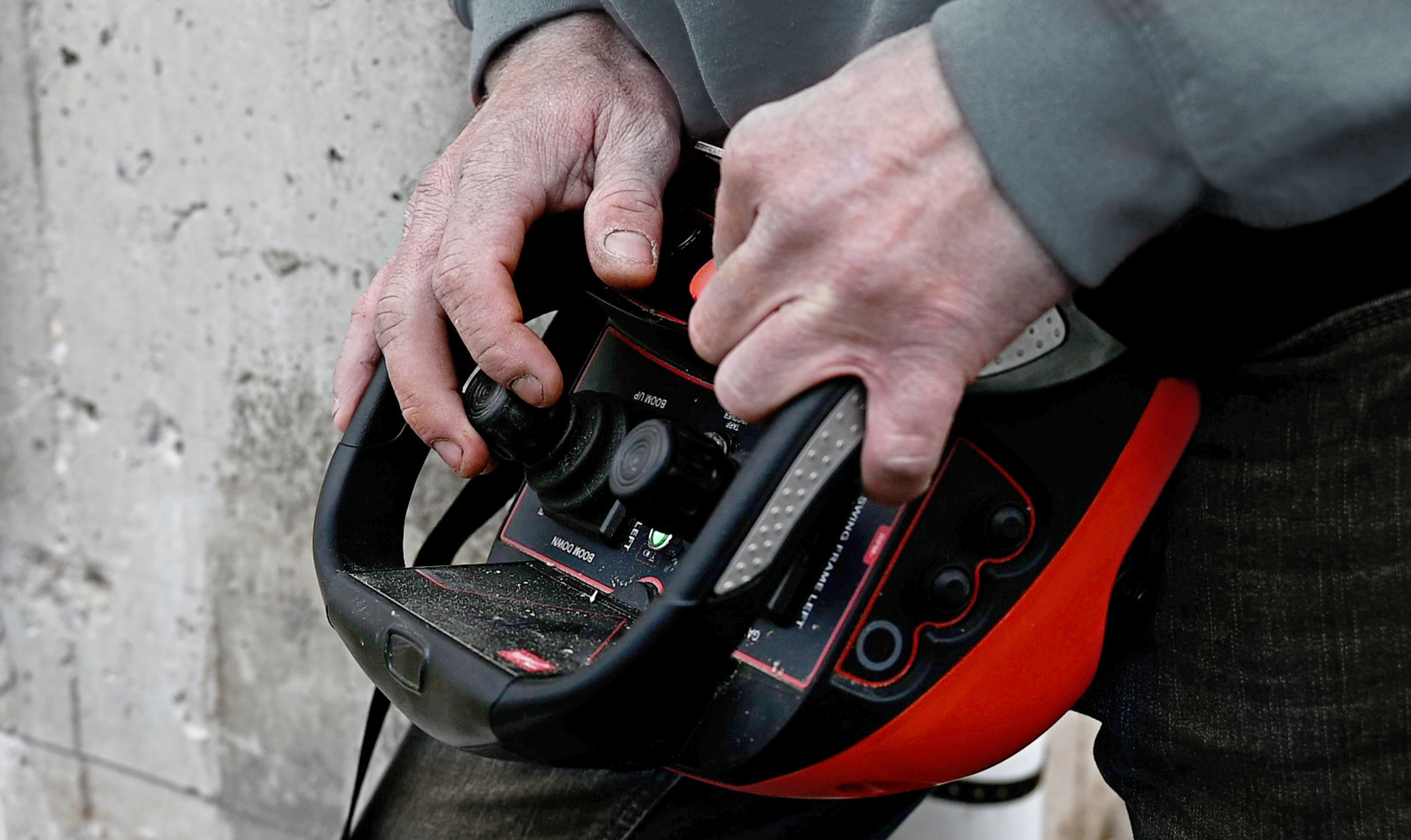

Danfoss IK3 / Plus1-CanBUS proportional wireless remote control with advanced diagnostic capabilities. Complete control of all Stone Slinger functions.

SPECIFICATIONS

Ultra Stone Slinger Specification
	Standard Width Apron Feed Belt			Wide Apron Option Feed Belt
	Ultra 16 Click for drawing	Ultra 18 Click for drawing	Ultra 20 Click for drawing	Ultra 16 (Wide) Click for drawing	Ultra 18 (Wide) Click for drawing	Ultra 20 (Wide) Click for drawing
Capacity (Level full top of steel)	15.4 yd³	17.0 yd³	18.8 yd³	16.2 yd³	18.8 yd³	20.1 yd³
Capacity (Level full top of wood boards)	17.9 yd³	19.9 yd³	21.9 yd³	18.7 yd³	21.6 yd³	23.2 yd³
Net Weight	9200 lbs	9500 lbs	9800 lbs	9600 lbs	9900 lbs	10300 lbs
Basic Body Dimensions (L × W × H)	16 ft × 102" × 85"	18 ft × 102" × 85"	20 ft × 102" × 85"	16 ft × 102" × 85"	18 ft × 102" × 85"	20 ft × 102" × 85"
"Live Bottom" Apron Feed Conveyor	26" wide pintle chain assembly Abrasion resistant, 330 PIW belting 20" wide belt exposure Variable speed hydraulic / planetary gearbox drive			36" wide pintle chain assembly Abrasion resistant, 330 PIW belting 30" wide belt exposure Variable speed hydraulic / planetary gearbox drive

Standard width apron feed belt

	Ultra 16 Click for drawing	Ultra 18 Click for drawing	Ultra 20 Click for drawing
Capacity (Level full top of steel)	15.4 yd³	17.0 yd³	18.8 yd³
Capacity (Level full top of wood boards)	17.9 yd³	19.9 yd³	21.9 yd³
Net Weight	9200 lbs	9500 lbs	9800 lbs
Basic Body Dimensions (L × W × H)	16 ft × 102" × 85"	18 ft × 102" × 85"	20 ft × 102" × 85"
"Live Bottom" Apron Feed Conveyor	26" wide pintle chain assembly Abrasion resistant, 330 PIW belting 20" wide belt exposure Variable speed hydraulic / planetary gearbox drive

Wide apron option feed belt

	Ultra 16 (Wide) Click for drawing	Ultra 18 (Wide) Click for drawing	Ultra 20 (Wide) Click for drawing
Capacity (Level full top of steel)	15.4 yd³	17.0 yd³	18.8 yd³
Capacity (Level full top of wood boards)	17.9 yd³	19.9 yd³	21.9 yd³
Net Weight	9200 lbs	9500 lbs	9800 lbs
Basic Body Dimensions (L × W × H)	16 ft × 102" × 85"	18 ft × 102" × 85"	20 ft × 102" × 85"
"Live Bottom" Apron Feed Conveyor	36" wide pintle chain assembly Abrasion resistant, 330 PIW belting 30" wide belt exposure Variable speed hydraulic / planetary gearbox drive

HIGH SPEED PLACING CONVEYOR

14" wide placing belt x 19ft long conveyor frame
HIGH CLEAT high performance, endless placing belt
Variable speed, hydraulic piston motor conveyor drive
Rubber covered, grooved conveyor drive pulley
Super-Shield Power-Drive
Full hydraulic lift and swing conveyor motion, 250⁰ working radius
Conveyor stowing for transport on driver or passenger side (Ultra 16 conveyor stowing passenger side only)

STANDARD FEATURES

Hydraulic vibrator
Engine throttle control
LED lighting throughout, including LED flood/spot work lights
Sliding, arched tarp system
HMW body liner on sloped side walls

CONTROL SYSTEMS

Manual Control - High Mount plus 3 Below - manual control hydraulic valves located at elevated operators platform at rear of Stone Slinger, includes 3 functions at lower location for conveyor movement

Manual Control - Dual Hydraulic - manual control hydraulic valves located at elevated operators platform at rear of Stone Slinger, as well as full control a lower ground location

Wireless Remote Control - Danfoss wireless remote control system with Danfoss PVG control valves with PLUS+1® CanBUS control. Control panel includes HMI diagnostic screen, local control and limp mode operation.
